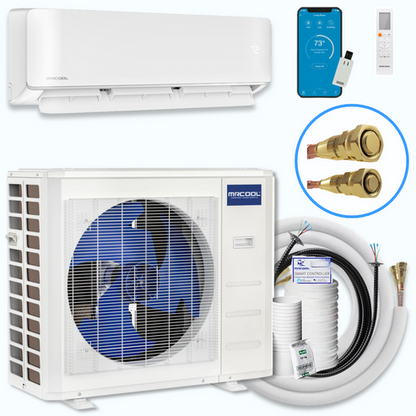

MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable, DIY-36-HP-WM-230D25-O
MRCOOL DIY® 5th Gen E Star 36,000 BTU Single Zone Mini Split Complete System 230V with 25 ft. DIY Quick Connect Line Set and DIYPRO Cable, DIY-36-HP-WM-230D25-O
Comes with 6 Kitchen Towels for FREE! (Complimentary Items):
Couldn't load pickup availability

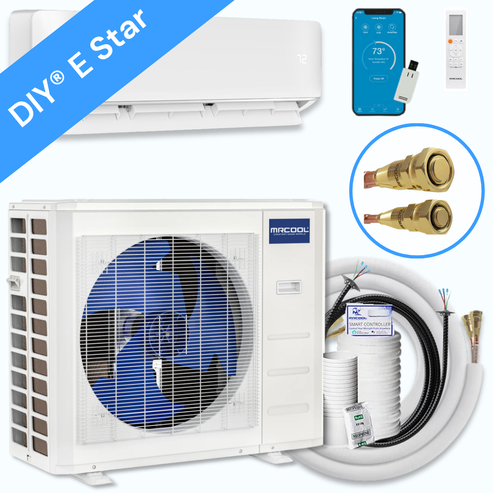

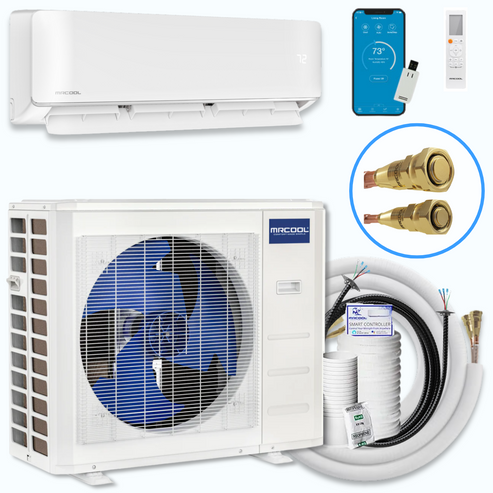

Upgrade your space with the 5th Gen MRCOOL® DIY® 36K BTU Single Zone Mini-Split - the ultimate solution for year-round heating and cooling in rooms 1,000 to 1,500 sq. ft. Engineered for effortless DIY installation, this mini split lets you take control of your comfort with an included 25 ft. QuickConnect® line set, DIYPRO® cable, and multiple wireless control options. Whether using the SmartHVAC app, remote, or voice commands, achieving perfect temperature control has never been easier.
With industry-leading energy efficiency, durability, and a best-in-class warranty, MRCOOL® is the trusted name in DIY climate control - giving you professional-grade performance without the hassle or expense of professional installation.
Why Choose MRCOOL® DIY® 5th Gen Mini-Split?
- America’s #1 DIY Mini Split: The nation’s most trusted DIY mini split, designed for quick, hassle-free installation and exceptional reliability.

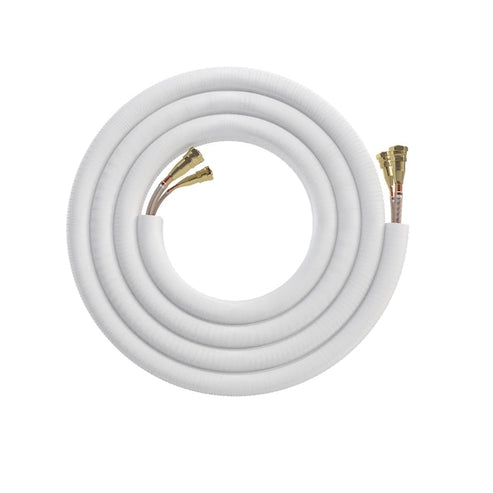

- DIY® QuickConnect® Line Set: Pre-charged with R-454B refrigerant, this line set ensures a quick, vacuum-free setup, making installation a breeze.
- Eco-Friendly Refrigerant: R-454B refrigerant offers a lower Global Warming Potential (GWP) than older refrigerants like R-410A, reducing environmental impact while boosting energy efficiency.

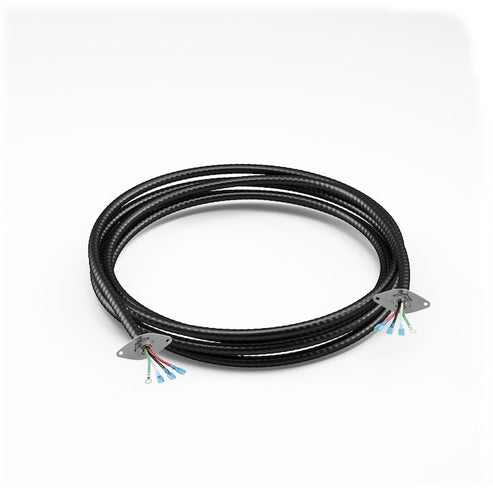

- DIYPRO® Cable: Say goodbye to electrical conduit - this cable is built for durability and protection against outdoor elements and wildlife, ensuring long-lasting performance.

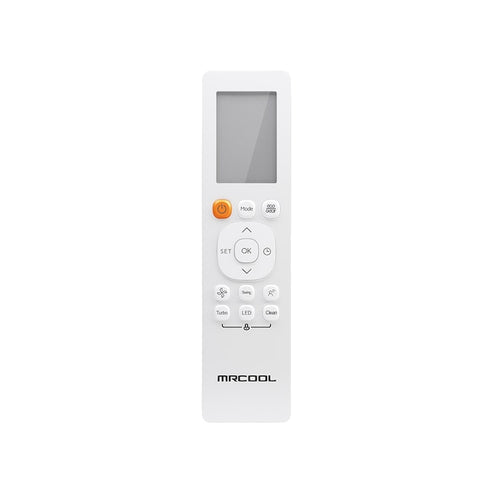

- Wireless Control Options: Control your comfort with the included remote, the SmartHVAC app (compatible with Apple and Android), or use voice commands with Amazon Alexa or Google Assistant.
- Follow Me Function: Enjoy consistent comfort with airflow that adjusts based on the remote’s location, ensuring even temperature distribution.
- Dry Mode: Acts as a dehumidifier to reduce excess moisture, improving indoor air quality and creating a more comfortable environment.
- Gold Fin® Condenser: Offers superior corrosion resistance, making it perfect for coastal homes and ensuring durability for the long haul.
- Industry-Leading Warranty: With a limited lifetime warranty, a 7-year compressor warranty, and a 5-year parts warranty, you can count on your MRCOOL® system for years to come.
- Certified Excellence: Intertek listed 5031495 for guaranteed reliability and safety.
Specifications
| Dimensions & Weight | |
|---|---|
| Condenser Dimensions | 37.24 W" x 16.14 D" x 31.89 H" |
| Condenser Weight | 152.12 lbs / 69 kg |
| Air Handler Dimensions | 49.57 W" x 11.10 D" x 14.25 H" |
| Air Handler Weight | 48.729 lbs / 22.1 kg |
| Capacity & Performance | |
| Zone Capacity | 1 |
| Cooling Capacity | 36,000 BTU |
| Outdoor Operating Temperature (Cooling) | -13°F - 122°F |
| EER2 | 8.5 |
| SEER2 | 18 |
| Heating Capacity | 36,000 BTU |
| Outdoor Operating Temperature (Heating) | -13°F - 75°F |
| HSPF2-4 | 8.5 |
| HSPF2-5 | 6.5 |
| Coverage Area | 1,000 to 1,500 sq ft. |
| Indoor Noise Level (Hi/Mi/Lo) | 55.5/49.5/43.5/38.0/27.5 dB(A) |
| Outdoor Noise Level | 60.5 dB(A) |
| Electrical Requirements | |
| Voltage | 208-230V |
| Phase | 1 |
| Cycle | 60 Hz |
| Max Fuse Breaker | 35A |
| Min Circuit Ampacity | 33A |
| Refrigerant & Piping | |
| Refrigerant Type | R-454B |
| Refrigerant Volume | 109.70 oz |
| Liquid Line Size | 3/8" |
| Suction Line Size | 5/8" |
| Max Line Set Length | 213.2 ft. |
| Features | |
| Inverter | DC |
| Compressor Type | Rotary |
| Fan Only Option | Yes |
| Quiet Mode | Yes |
| Auto Cool | Yes |
| Wifi Compatibility | Yes |
| App Compatibility | Yes |
| Works with IOS | Yes |
| Works with Android | Yes |
| Remote Control Included | Yes |
| Certifications & Warranty | |
| Certifications | UL Listed, ETL Listed, AHRI Certified |
| Warranty | 7 Years Compressor 5 Years Parts |
