MRCOOL

MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, DIY-B-227HP0918

MRCOOL DIY Mini Split - 27,000 BTU 2 Zone Ductless Air Conditioner and Heat Pump, DIY-B-227HP0918

Regular price $3,715.00 USD
Regular price Sale price $3,715.00 USD
Sale Sold out
Shipping calculated at checkout.
Mount type

Comes with 6 Kitchen Towels for FREE! (Complimentary Items):

View full details

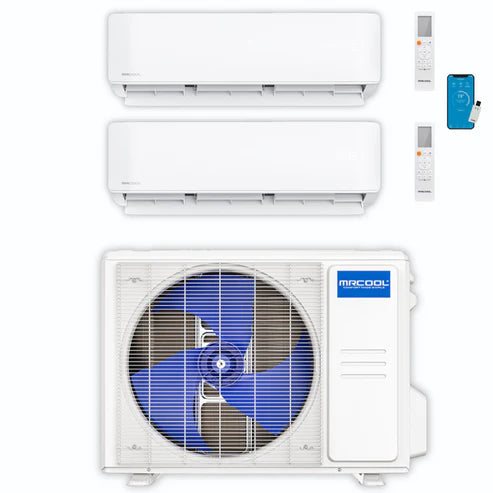

This 4th Generation MRCOOL Mini Split includes a DIY 27,000 BTU Multi-Zone Condenser, one 9,000 BTU Wall Mounted Air Handler, one 18,000 BTU Wall Mounted Air Handler and two Remotes. The best part about all of this is that you can install it yourself!

Key Features

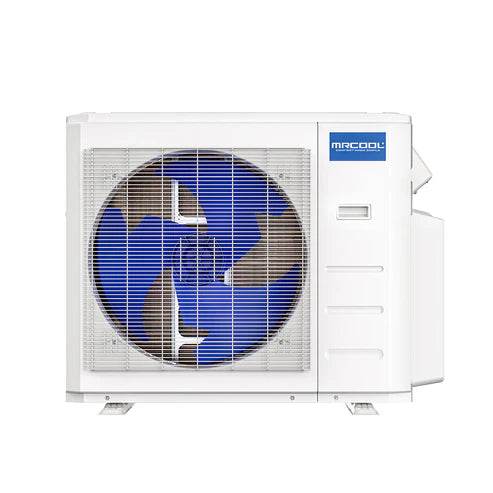

Condenser

  • Energy Efficient. This 3 Zone condenser, when paired with select MRCOOL air handlers, is capable of producing an impressive 22 SEER efficiency rating.
  • Works In All Environments. The capability to continue to deliver heating performance when temperatures reach -13°F
  • Lifetime Warranty. For added peace of mind, this is the only condenser on the market that comes with a limited lifetime compressor warranty. Simply register into the MRCOOL Care Program to get the lifetime warranty!

Air Handler, 9K BTU

  • Large Coverage Area. Handler covers an area up to 375 sq. ft.
  • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
  • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
  • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Air Handler, 18K BTU

  • Large Coverage Area. Handler covers an area up to 750 sq. ft.
  • Versatile. Incredibly versatile and equipped with multiple operating modes, which include COOL, HEAT, AUTO, DRY (dehumidify), and SLEEP.
  • Easy to Control. This unit also has the capability to be controlled by your Apple or Android smartphone through the use of the Smart HVAC app.
  • Convenient Installation. With its light and compact design, it can be installed easily to most interior walls with the included mounting plate.

Specifications

Condenser
Product Dimensions 37.24"W x 16.14"D x 31.89"H
Cooling Capacity 27,000 BTU
Heating Capacity 27,000 BTU
Zone Capacity 3
Cool Mode - Outdoor Operating Temperature Range 5F ~ 122F
Heat Mode - Outdoor Operating Temperature Range -13F ~ 75.2F
SEER 22
EER 12
Voltage Requires a minimum of 208V-230V/60HZ/26-40A (please check your home meets this electrical requirement prior to purchase)
Registered Warranty 7 Years Replacement on Compressor, 5 Years Parts
Air Handler 9K BTU
Product Dimensions 31.57"W x 7.44"D x 11.69"H
Mount Type Wall
Cooling Capacity 9,000 BTU
Heating Capacity 9,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-Only
Dry - dehumidify
Cool
Heat
Fan Only
Quiet
Sleep
Air Handler 18K BTU
Product Dimensions 42.52"W x 8.90"D x 13.19"H
Mount Type Wall
Cooling Capacity 18,000 BTU
Heating Capacity 18,000 BTU
Registered Warranty 5 Years Parts
Modes Auto - auto selects from Cool, Heat or Fan-OnlyDry - dehumidifyCoolHeatFan OnlyQuietSleep

Owner's Manual
